High Diffusion Espresso Shower Screen - LM, E61, MV

From $60.50 USD

Choose between our LM, E61 & MV HD shower screen sets. Precision water flow for perfectly even extractions, every shot.

Ultimate Water Diffusion

Targeting the entire puck bed, creating complete diffusion every time.

Full Surface Coverage

No bulky frames blocking surface coverage

Precision Water Diffusion

18 targeted channels for consistent water flow.

Consistant Variables

Eliminating irregular water paths, resulting in complete control.

Size: Choose an option

Size: Choose an option
LM - HD Shower Screen
E61 - HD Shower Screen
MV - HD Shower Screen

Free US shipping
over $100+

Excellent
customer service

Fast & easy
returns

Promo Icon

Gold Coast Dispatch

All US + Aus orders: Items are quality checked, packed and shipped from our warehouse on the Gold Coast, Australia.

For all Breville HD Shower Screens Click here +

Overview

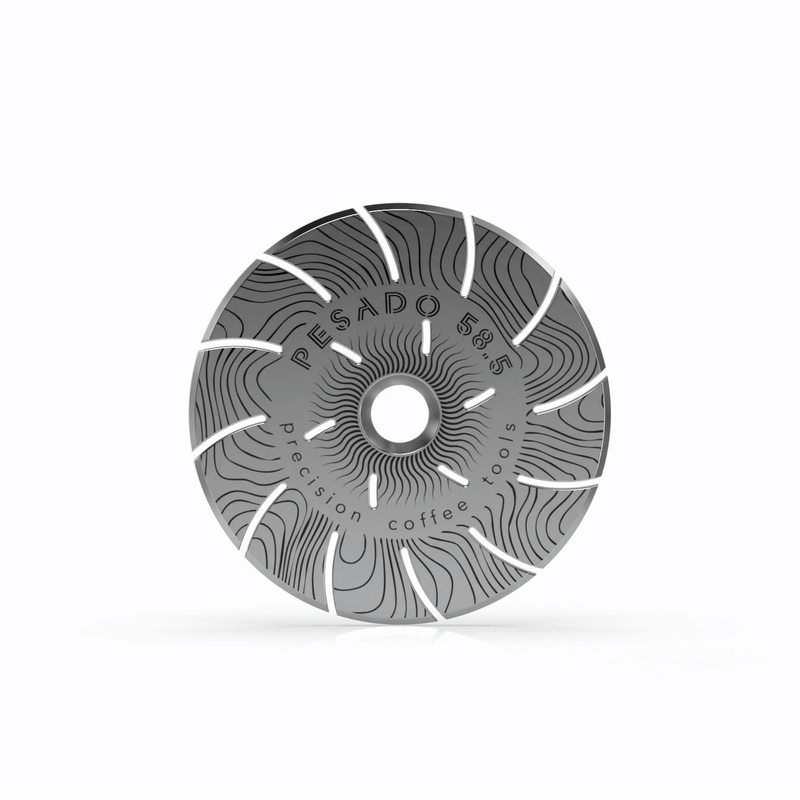

Introducing the Pesado HD Espresso Shower Screen. This HD Espresso Shower Screen is designed for precision and consistency, eliminating the main issues causing irregular extractions.

Uneven water distribution has always been an issue when trying to achieve consistent extractions, this can be caused by the irregular water flow path through mesh shower screens, smaller surface area coverage and uneven puck infusion.

Utilizing 18 channels, this HD espresso shower can target the exact spots of every extraction, resulting in consistent water flow between every shot.

Combined with the unique feature of the outer channels running all the way to the edge of the espresso shower screen, controlling water flow to target the entire puck bed right to the basket edge, giving us complete control over our water diffusion for every shot.

LM HD Compatibility

SKU: LMHD

Machine Compatibility:

  • La Marzocco
  • Synesso

*Not compatible with KB90, Strada X-1 & Modbar.

*LM GS3 and Mini/Micra customers

*The discharge mesh will need to be cleaned more regularly. This will not affect your machine's performance but it is recommended as you will find more discharge when using the screen.

Material: 304 Stainless Steel

LM HD Shower Screen Thickness: 3mm

LM HD Shower Screen Diameter: 58.35mm

Holes: 18 Channels

What Comes In The LM HD Set: 1 x 58.35mm HD Shower Screen, 1 x Shower Screen Screw

E61 HD Compatibility

SKU: E61HD

Machine Compatibility:

  • Ascaso Steel Uno / Duo
  • Ascaso Baby T
  • Rocket Appartamento
  • Lelit Bianca

*Not compatible with Belleza, Expobar, CREM, Turin and Gemilai E61 groups.

Material: 304 Stainless Steel

E61 HD Shower Screen Thickness: 3mm

E61 HD Shower Screen Diameter: 58.35mm

Holes: 18 Channels

What Comes In The E61 HD Set: 1 x Diffusion Plate, 1 x 58.35mm HD Shower Screen, 1 x Shower Screen Screw

MV HD Compatibility

SKU: MVHD

Machine Compatibility:

  • Mavam
  • Nuova Simonelli
  • Victoria Arduino
  • Breville 58mm
  • Rancilio Silvia / Pro X
  • Profitec Go / Move
  • Bezzera BZ group
  • Lelit Elizabeth / Victoria
  • ECM Casa V.

Material: 304 Stainless Steel

MV HD Shower Screen Thickness: 3mm

MV HD Shower Screen Diameter: 58.35mm

MV HD Diffusion Plate Thickness: 5.4mm

MV HD Diffusion Plate Diameter: 57.5mm

Holes: 18 Channels

What Comes In The MV HD Set: 1 x 58.35mm MV-HD Shower Screen, 1 x MV-HD Diffusion Plate.

*You will need to use your current shower screen screw to use the product.

How To Install

LM - HD Shower Screen:

  1. Simply unscrew the shower screen screw.
  2. Remove the current shower screen and clean the group head.
  3. Then screw in the new HD shower screen

Make sure it is completely screwed in before use.

E61 - HD Shower Screen:

  1. You're current E61 shower screen will not have a centre screw like our HD does, so first you need to pop out your current shower screen and seal.
  2. Unscrew the diffusion screw inside the group head. This is very easy to do, all you need is an m8 allen key.
  3. Then simply screw in our new HD diffusion screw which gives you the ability to screw in the new HD high diffusion shower screen to the diffusion plate.
  4. Then insert your gasket seal and use your portafilter to tighten the seal.

Make sure the HD shower screen is completely screwed in before use.

MV - HD Shower Screen:

  1. Simply unscrew the center shower screw on your shower screen, and detach the shower screen and diffusion plate together from the group head.
  2. Make sure to clean any residue on the group head before screwing in the new shower screen. We recommend doing a complete backflush before using new shower screen.
  3. Place the new 100% stainless steel diffusion plate against the new HD shower screen, making sure the indent on the diffusion plate is facing away from the shower screen.
  4. Screw in the new MVHD high diffusion shower screen and diffusion plate together using your current shower screw, and you are good to go!
Shipping & Returns

Shipping Within Australia: 🇦🇺

We proudly offer Fast "FREE Shipping" Australia wide on all orders over $89+.

US Shipping: 🇺🇸

We offer a $20 flat rate DHL Shipping for all US orders under $100.

We offer FREE DHL Shipping when you spend over $100+.

*We now cover all new tarrif/import fees into the US. The price you see at checkout is the final price you pay.

Worldwide Shipping: 🌍

All worldwide orders will be shipped with DHL Express Shipping.

*All orders outside of the US will need to cover any duties or import fees into your country. These are calculated by the total order value*

Order Dispatch: 📦

Orders will be despatched from our warehouse on The Gold Coast, Australia within 24-48 hours after purchase. (Excludes weekends)

Email us if you have any concerns or issues with your order.

What The Pesado Community are saying

Our community from all over the globe use our precision engineered tools to improve their coffees daily!

Product image

Thomas P.

Verified Buyer

I have an older Lilet Bianca V1 and I started to notice that I wasn't getting the bast pull/shot. I wanted to upgrade my shower screen so I did my research. This product just makes sense and boy did it ever. After I dialed in the grind it will be finer, the shots of espresso have been amazing.. I have to thank the customer service team because I asked them so many questions before I purchased. You won't go wrong truly a phenomenal upgrade. A small price considering the cost of your machine.

Product image

David H.

Verified Buyer

What I liked: I did not have to change grind size or brew time, the flow rate stayed pretty close to the old screen. It stays cleaner than the cold screen. I am using a bottomless filter, I can see the coffee starting to flow centered and evenly. Still experimenting...

Product image

Richard D.

Verified Buyer

My shots are far, far more consistent. I'm not surprised as I had long noticed the randomness of water flow through the screen it replaced. Brilliant design and proof that a small investment like this can bring a significant improvement to a $4,000+ espresso brewing system.

Product image

Norman N.

Verified Buyer

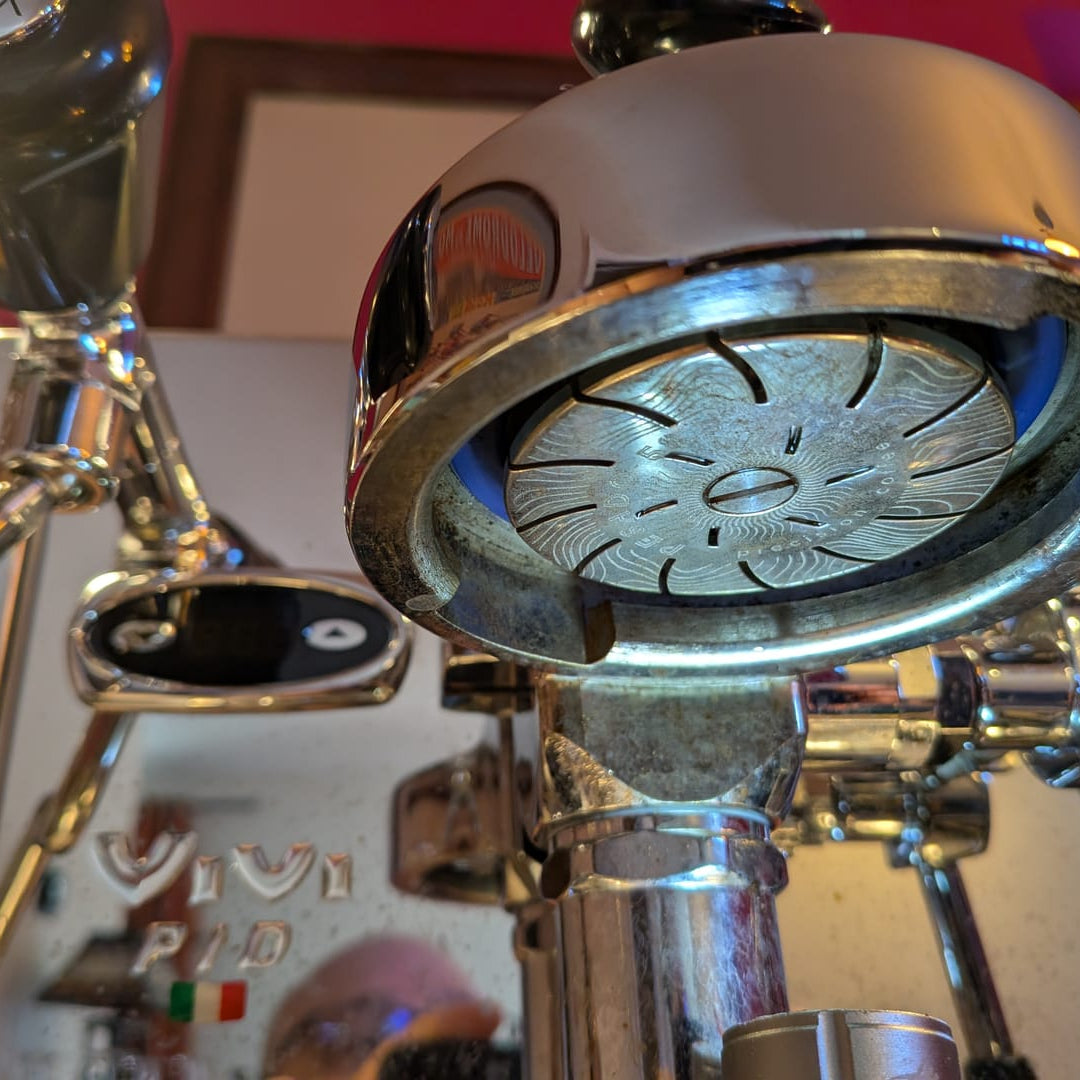

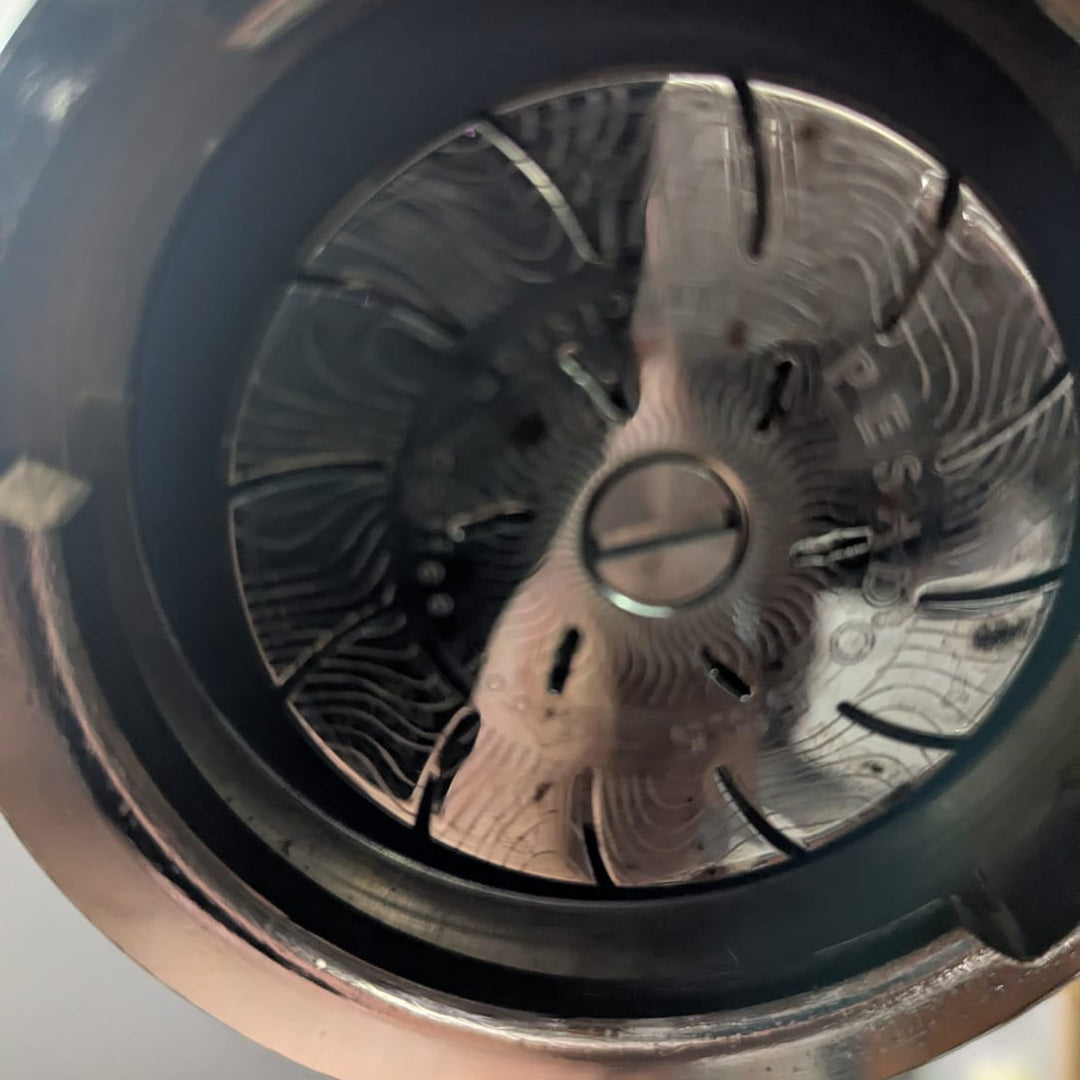

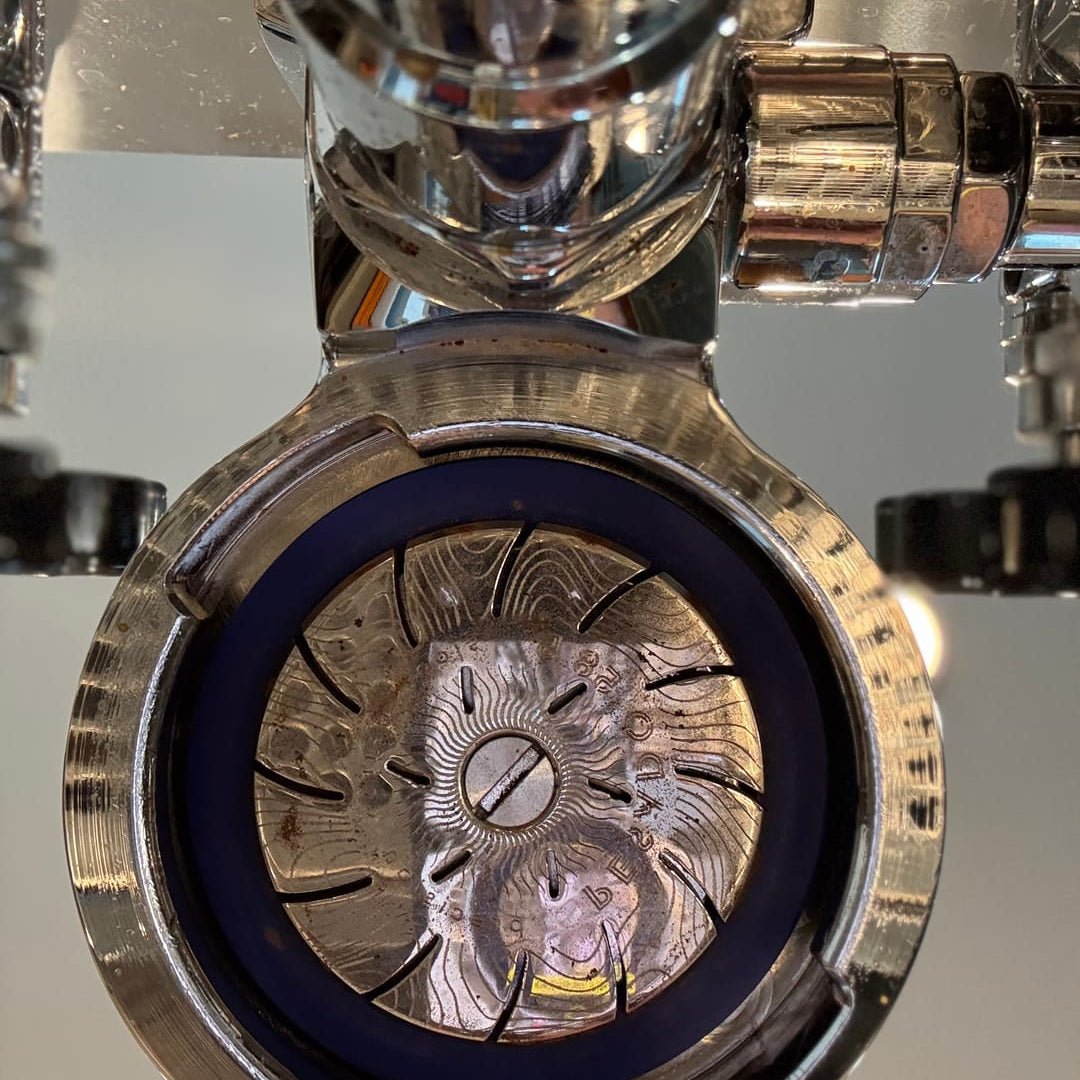

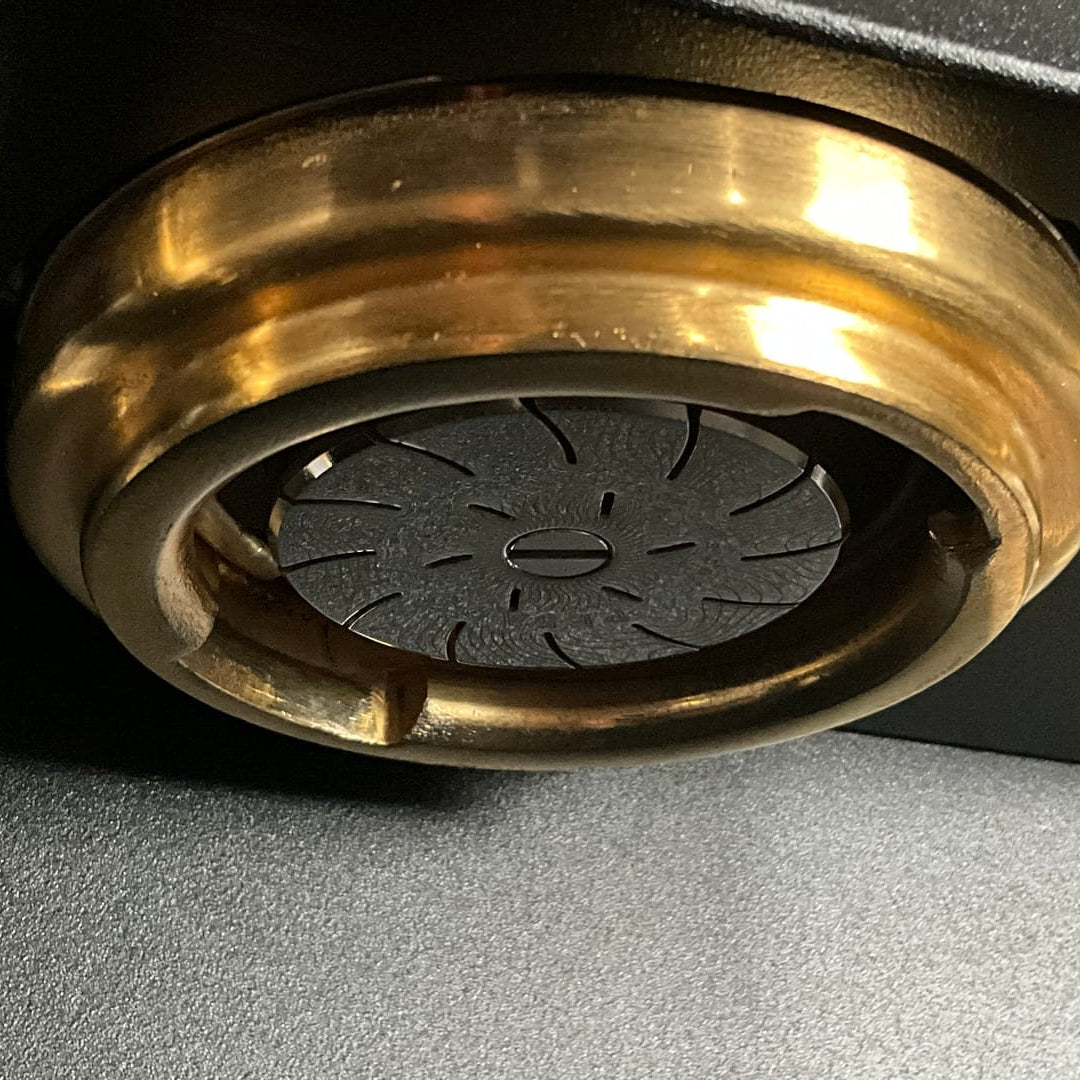

Works as advertised and fits my LM. Not sure if there is a different with taste but water flow is definitely more consistent.

Product image

Kim S.

Verified Buyer

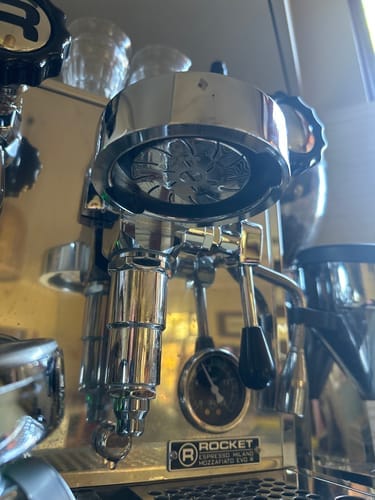

Loving the larger head area with the PESADO 58.5 shower screen. The crema is more consistent and the screen is easy to clean.

Product image

Steve T.

Verified Buyer

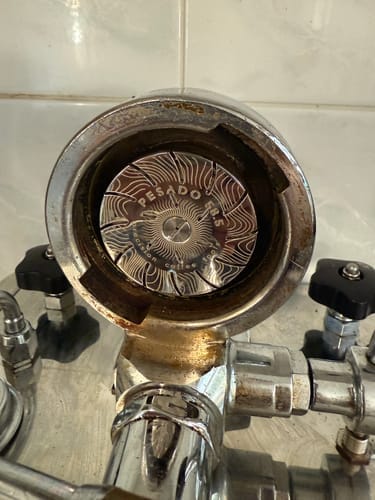

I've got a 20 year old Giotto (where Rocket started). It's had many upgrades and mods over the years. This latest Pedaso shower screen replacement is a gem! - I was so sick of scrubbing shower screens every 6 months, plus the extraction is greatly improved (especially coupled with a HE basket from Pesado). Love your work Pesado! - Thank you!

Complete Diffusion

Every Extraction!
Eliminating inconsistent water diffusion while targeting the entire puck surface area with our unique, full coverage high diffusion shower screen, dialing in your extractions has never been easier.
Eliminates uneven extractions by solving the issues of irregular water flow, limited surface coverage, and uneven puck infusion found in standard shower screens.
18 precision channels ensure targeted and consistent water flow across the puck, delivering uniform extractions shot after shot.
Full-edge diffusion design extends channels to the very edge of the basket, giving complete control over water distribution and maximizing flavour.

Key Features With High Diffusion

Eliminating inconsistent water diffusion while targeting the entire puck surface area with our unique, full coverage high diffusion shower screen, dialing in your extractions has never been easier.

18 Targeted

Channels
Crafted entirely from stainless steel, with 18 targeted channels the NEW Pesado HD High Diffusion Shower Screen gives complete control over your water distribution, every extraction.

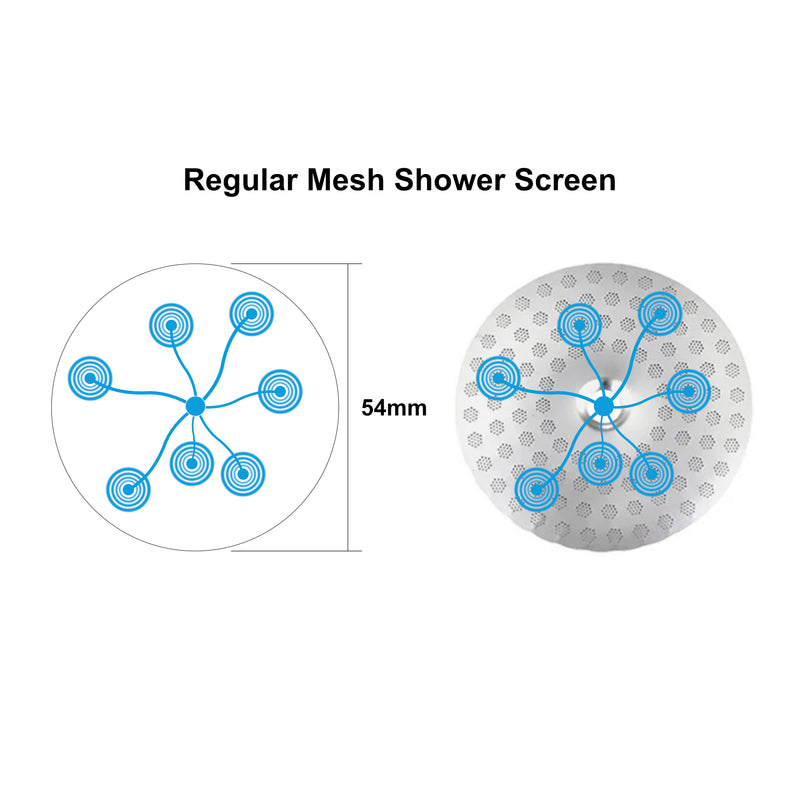

Regular

Water Flow
Regular espresso shower screens use a mesh to help distribute the water flow evenly, this does work quite well but unfortunately, it can result in uneven water distribution.This is due to the water gripping to the mesh, causing an irregular water flow every extraction.

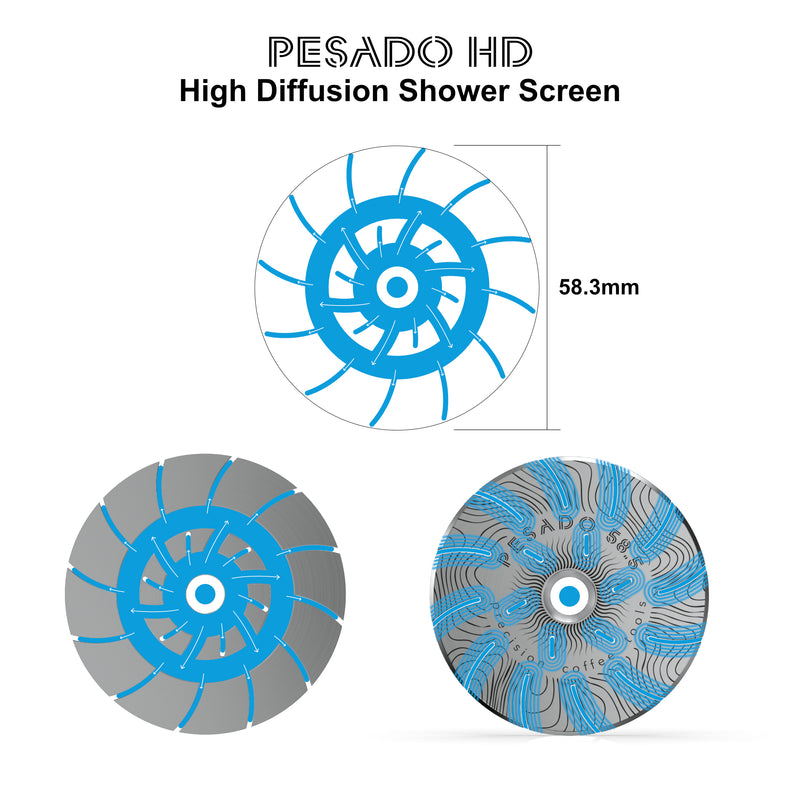

High Diffusion

Water Flow
The HD High Diffusion Espresso Shower Screen has been designed with channels to distribute the water flow exactly where we want it to be every time. Using this method allows us to hit the exact area we need to every extraction, distributing the water flow outwards across the entire puck bed, evenly. The HD Shower Screen also has a unique feature where the outer channels run all the way to the edge, allowing water to flow directly out the ends into the basket wall.

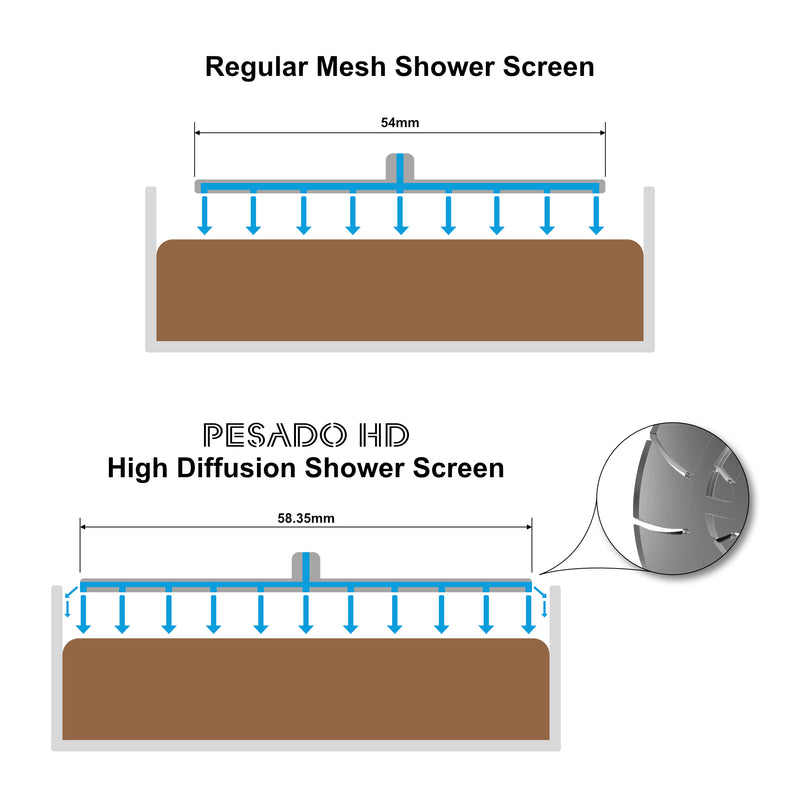

High Diffusion

Puck Clearance
Most shower screens are only designed to cover up to 54mm in diameter, leaving between 4-5mm around the perimeter, resulting in a smaller surface area of about 10-15% less coverage.Utilizing the unique design of the water channels that run all the way to the edge of the shower screen, including the extended diameter of 58.35mm of surface area, we can target the entire puck bed all at once resulting in a full, and complete infusion.

Why Pesado Is ThePerfect Choice

The precision engineered coffee tools that not only look amazing, they perform and last a lifetime.

Features Solutions
Made from high-grade stainless steel
Built to last in commercial settings
Available HD sets for over 50+ machines
Quality checked in Australia
Australian based customer service
Gold Coast showroom to meet in person

Frequently Asked Questions

The HD Shower Screen is designed to target the entire surface area of the puck bed, consistently every extraction. Utilizing an 18-channel design that targets up to 58.35mm of surface area, we can target the same spots of the puck bed every shot. This creates consistent, precise water diffusion.

Regular mesh shower screens cause erratic water diffusion due to the water gripping to the mesh and flowing completely different paths every extraction. This creates variables every time you extract that you cannot control.

Grab yourself the HD High Diffusion Espresso Shower Screen and create consistent, precise and high-diffused extractions for every shot.

HD Espresso ShowerScreen Compatibility Guide:

Check product specifications above for full compatibility and how to install the HD espresso shower screen.

The high diffusion shower screen range are designed for 54mm and 58mm espresso machines.

See above for full compatibility.

LM - HD Shower Screen:

  1. Simply unscrew the shower screen screw.
  2. Remove the current shower screen and clean the group head.
  3. Then screw in the new HD shower screen

Make sure it is completely screwed in before use.

E61 - HD Shower Screen:

  1. You're current E61 shower screen will not have a centre screw like our HD does, so first you need to pop out your current shower screen and seal.
  2. Unscrew the diffusion screw inside the group head. This is very easy to do, all you need is an m8 allen key.
  3. Then simply screw in our new HD diffusion screw which gives you the ability to screw in the new HD high diffusion shower screen to the diffusion plate.
  4. Then insert your gasket seal and use your portafilter to tighten the seal.

Make sure the HD shower screen is completely screwed in before use.

MV - HD Shower Screen:

  1. Simply unscrew the center shower screw on your shower screen, and detach the shower screen and diffusion plate together from the group head.
  2. Make sure to clean any residue on the group head before screwing in the new shower screen. We recommend doing a complete backflush before using new shower screen.
  3. Place the new 100% stainless steel diffusion plate against the new HD shower screen, making sure the indent on the diffusion plate is facing away from the shower screen.
  4. Screw in the new MVHD high diffusion shower screen and diffusion plate together using your current shower screw, and you are good to go!

When using the HD espresso shower screen daily we recommend using a cleaning brush to keep the outer surface and channels free of coffee grounds.

Once a week we recommend a full clean, which involves unscrewing the shower screen and washing both the shower screen plate and screws under water. This will ensure no buildup, and a clean and consistent flow of water for every extraction.
