High Diffusion Espresso Shower Screen - Breville

From $55.00 USD

Choose between our 54 HD & MV HD shower screen sets designed for all Breville machines. Precision water flow for perfectly even extractions, every shot.

Ultimate Water Diffusion

Targeting the entire puck bed, creating complete diffusion every time.

Full Surface Coverage

No bulky frames blocking surface coverage

Precision Water Diffusion

18 targeted channels for consistent water flow.

Consistant Variables

Eliminating irregular water paths, resulting in complete control.
54 HD Completely Sold Out! All new 54 HD orders from August 20th, will be placed as pre-order and be shipped out on 8th September week.

Size: Choose an option

Size: Choose an option
54HD - Breville 54mm
MVHD - Breville 58mm

Free US shipping
over $100+

Excellent
customer service

Fast & easy
returns

Promo Icon

Gold Coast Dispatch

All US + Aus orders: Items are quality checked, packed and shipped from our warehouse on the Gold Coast, Australia.

For all LM and E61 HD shower screens click here +

Overview

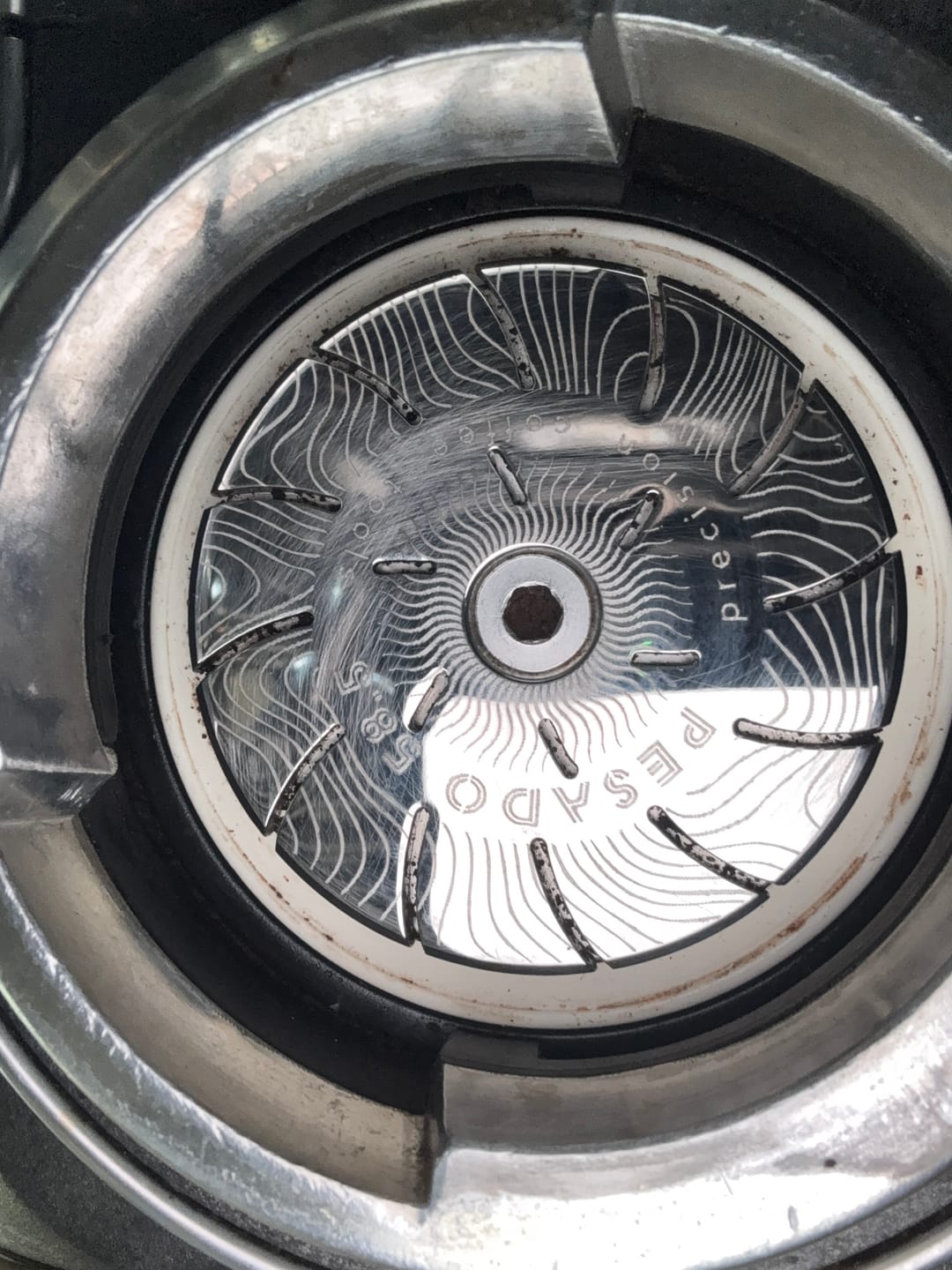

Introducing the Pesado HD Espresso Shower Screen. This HD Espresso Shower Screen is designed for precision and consistency, eliminating the main issues causing irregular extractions.

Uneven water distribution has always been an issue when trying to achieve consistent extractions, this can be caused by the irregular water flow path through mesh shower screens, smaller surface area coverage and uneven puck infusion.

Utilizing 18 channels, this HD espresso shower can target the exact spots of every extraction, resulting in consistent water flow between every shot.

Combined with the unique feature of the outer channels running all the way to the edge of the espresso shower screen, controlling water flow to target the entire puck bed right to the basket edge, giving us complete control over our water diffusion for every shot.

Breville 54mm Compatibility

SKU: 54HD

Machine Compatibility: All Breville 54mm models.

  • Bambino
  • Bambino Plus
  • Barista Express
  • Barista Pro
  • Barista Touch
  • Breville Touch Impress
  • Infuser
  • Duo-Temp Pro
  • Sage
  • Solis

Material: 304 Stainless Steel

54 HD Thickness: 2.6mm

54 HD Diameter: 53mm

Holes: 18 Channels

What Comes In The 54HD Set: 1 x 53mm 54-HD High Diffusion Shower Screen

Breville 58mm Compatibility

SKU: MVHD

Machine Compatibility: All Breville 58mm models.

  • Dual Boiler
  • Oracle
  • Oracle Touch
  • Oracle Jet

*MV HD not compatible with Breville 58mm single baskets. Only use with double baskets.

Material: 304 Stainless Steel

MV HD Thickness: 3mm

MV HD Diameter: 58.35mm

Diffusion Plate Thickness: 5.4mm

Diffusion Plate Diameter: 57.5mm

Holes: 18 Channels

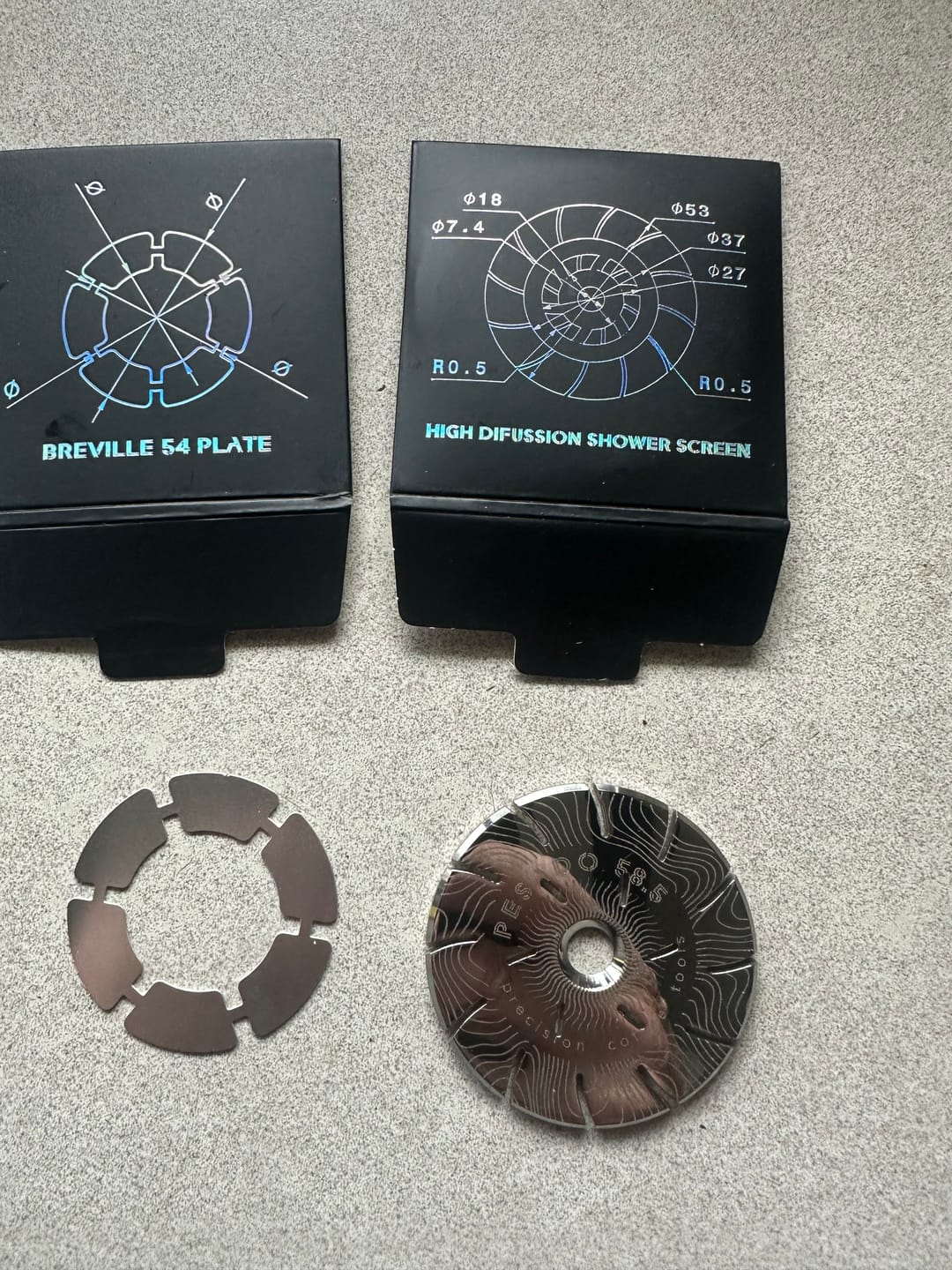

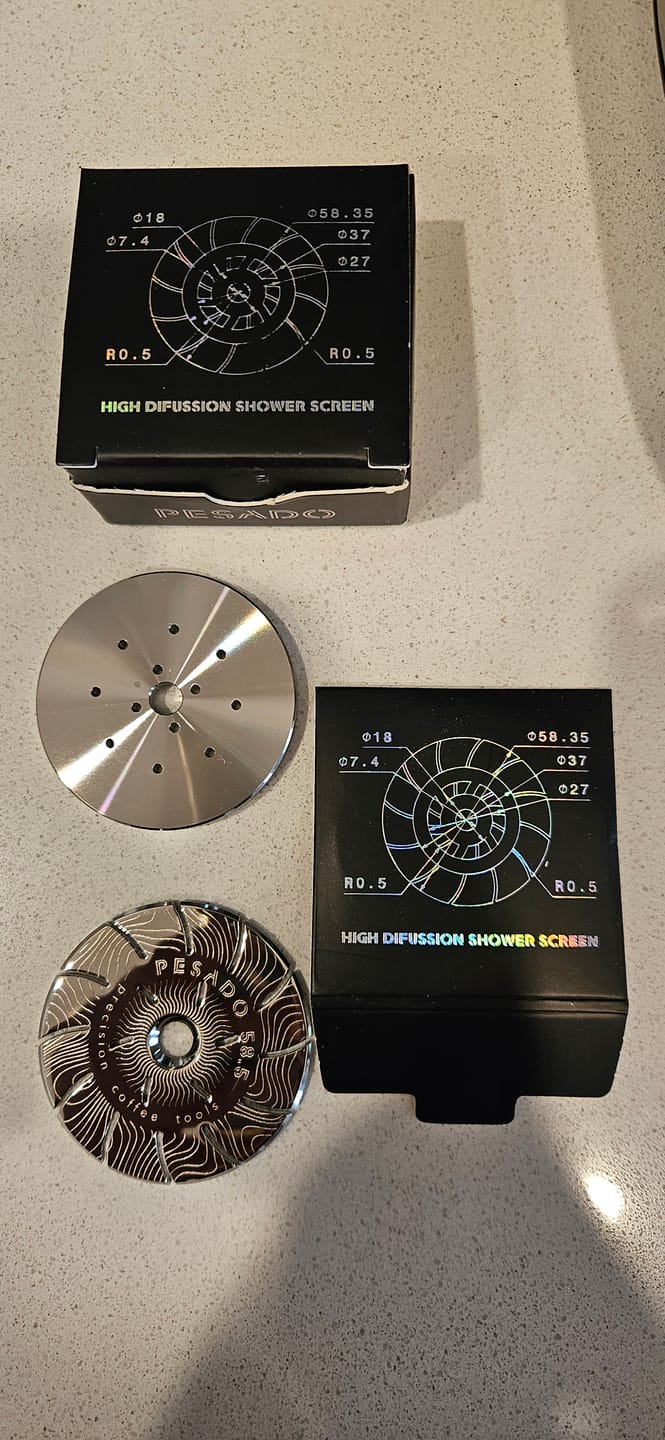

What Comes In The 58HD Set: 1 x 58.35mm MV-HD Shower Screen, 1 x MV-HD Diffusion Plate.

*You will need to use your current shower screen screw to use the product.

How To Install

Breville 54mm (54HD) Shower Screen:

  1. Simply unscrew the center shower screw on your shower screen, and detach the shower screen from the group head.
  2. Make sure to clean any residue on the group head before screwing in the new shower screen. We recommend doing a complete backflush before using new shower screen.
  3. Screw in the new 54HD high diffusion shower screen using your current shower screw, and you are good to go!

54HD YouTube Video: Watch here

Breville 58mm (MVHD) Shower Screen:

  1. Simply unscrew the center shower screw on your shower screen, and detach the shower screen and plastic diffusion plate together from the group head.
  2. Make sure to clean any residue on the group head before screwing in the new shower screen. We recommend doing a complete backflush before using new shower screen.
  3. Place the new 100% stainless steel diffusion plate against the new HD shower screen, making sure the indent on the diffusion plate is facing away from the shower screen.
  4. Screw in the new MVHD high diffusion shower screen and diffusion plate together using your current shower screw, and you are good to go!

MVHD - Breville 58 YouTube Video: Watch here

Shipping & Returns

Shipping Within Australia: 🇦🇺

We proudly offer Fast "FREE Shipping" Australia wide on all orders over $89+.

US Shipping: 🇺🇸

We offer a $20 flat rate DHL Shipping for all US orders under $100.

We offer FREE DHL Shipping when you spend over $100+.

*We now cover all new tarrif/import fees into the US. The price you see at checkout is the final price you pay.

Worldwide Shipping: 🌍

All worldwide orders will be shipped with DHL Express Shipping.

*All orders outside of the US will need to cover any duties or import fees into your country. These are calculated by the total order value*

Order Dispatch: 📦

Orders will be despatched from our warehouse on The Gold Coast, Australia within 24-48 hours after purchase. (Excludes weekends)

Email us if you have any concerns or issues with your order.

Breville 54mm

Complete Diffusion
Breville’s 54mm machines rely on a water path built on one side of the group head, often leading to uneven flow. Our high diffusion shower screen redistributes water evenly across the entire puck, eliminating side-biased extractions and giving you balanced flavour in every shot.
Corrects the side-biased water path built into Breville’s 54mm group head
Ensures even water dispersion across the entire puck surface
Reduces channeling for more balanced flavour and consistency in every shot

Breville 58mm

Upgraded Performance

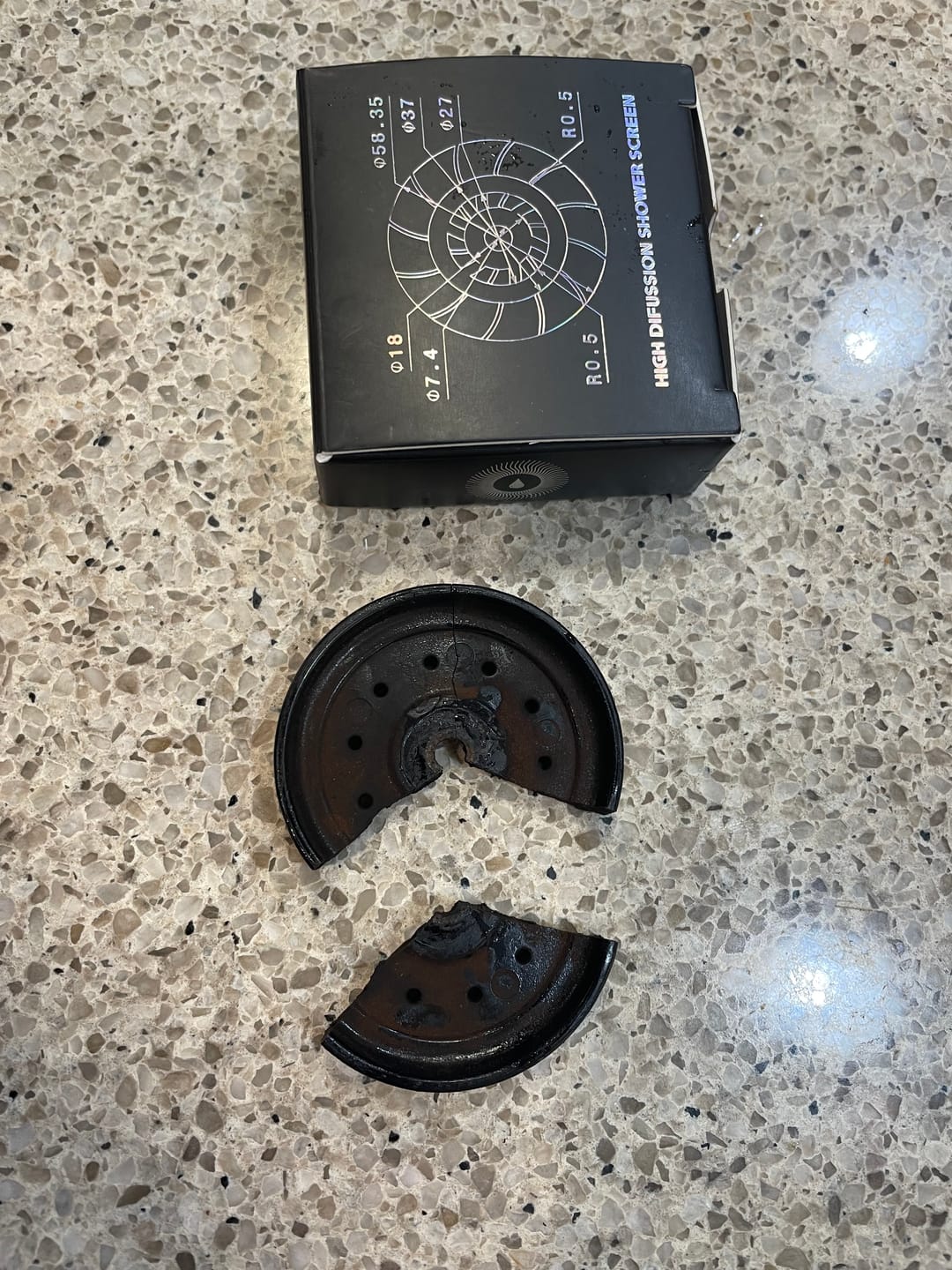

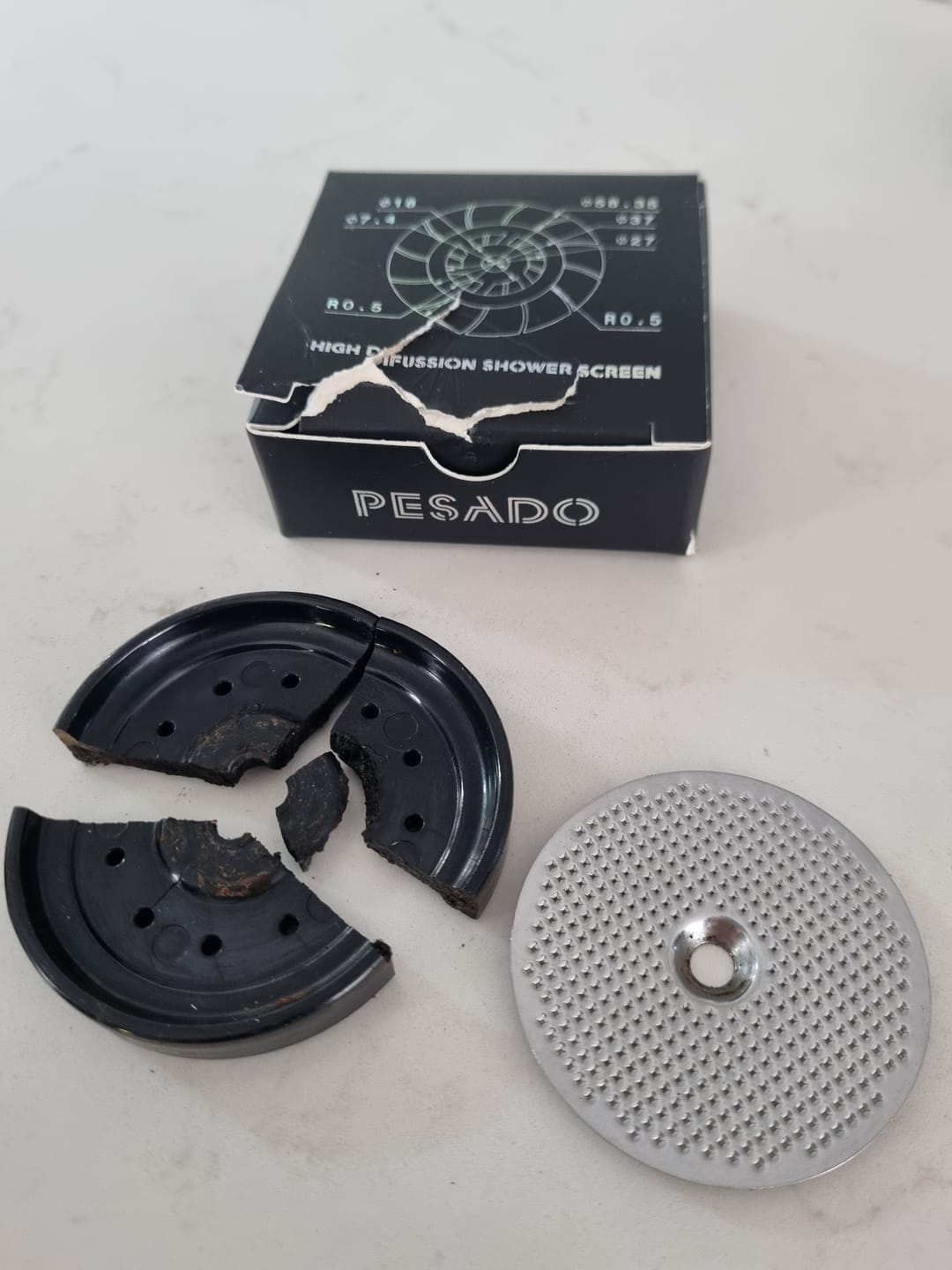

Behind the stock shower screen on Breville’s 58mm machines sits a plastic diffusion plate that can warp and crack over time, disrupting water flow. Our full 100% stainless steel diffusion plate and high diffusion shower screen replaces that weak point, delivering consistent coverage across the puck for cleaner, more reliable extractions.
Replaces the stock plastic diffusion plate that warps and cracks over time
Provides durable, full stainless steel construction for long-term reliability
Delivers consistent, even water flow for cleaner extractions and richer flavour

Key Features With High Diffusion

Eliminating inconsistent water diffusion while targeting the entire puck surface area with our unique, full coverage high diffusion shower screen, dialing in your extractions has never been easier.

18 Targeted

Channels
Crafted entirely from stainless steel, with 18 targeted channels the NEW Pesado HD High Diffusion Shower Screen gives complete control over your water distribution, every extraction.

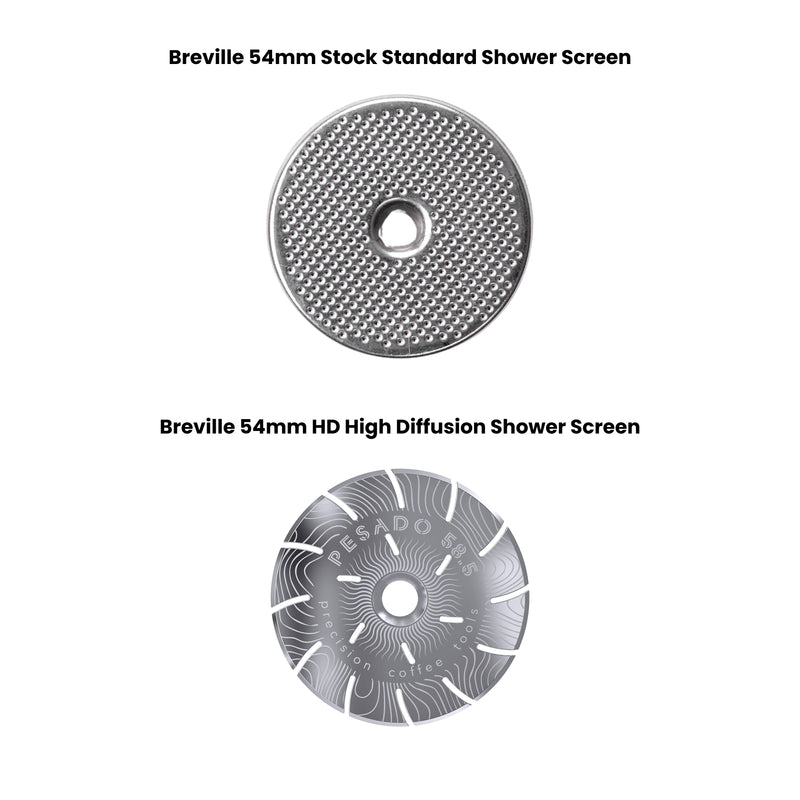

Regular

Water Flow
Regular espresso shower screens use a mesh to help distribute the water flow evenly, this does work quite well but unfortunately, it can result in uneven water distribution.This is due to the water gripping to the mesh, causing an irregular water flow every extraction.

High Diffusion

Water Flow
The HD High Diffusion Espresso Shower Screen has been designed with channels to distribute the water flow exactly where we want it to be every time. Using this method allows us to hit the exact area we need to every extraction, distributing the water flow outwards across the entire puck bed, evenly. The HD Shower Screen also has a unique feature where the outer channels run all the way to the edge, allowing water to flow directly out the ends into the basket wall.

High Diffusion

Puck Clearance
Most shower screens are only designed to cover up to 54mm in diameter, leaving between 4-5mm around the perimeter, resulting in a smaller surface area of about 10-15% less coverage.Utilizing the unique design of the water channels that run all the way to the edge of the shower screen, including the extended diameter of 58.35mm of surface area, we can target the entire puck bed all at once resulting in a full, and complete infusion.

Why Pesado Is ThePerfect Choice

The precision engineered coffee tools that not only look amazing, they perform and last a lifetime.

Features Solutions
Made from high-grade stainless steel
Built to last in commercial settings
Available HD sets for all Breville models
Quality checked in Australia
Australian based customer service
Gold Coast showroom to meet in person

Frequently Asked Questions

The HD Shower Screen is designed to target the entire surface area of the puck bed, consistently every extraction. Utilizing an 18-channel design that targets up to 58.35mm of surface area, we can target the same spots of the puck bed every shot. This creates consistent, precise water diffusion.

Regular mesh shower screens cause erratic water diffusion due to the water gripping to the mesh and flowing completely different paths every extraction. This creates variables every time you extract that you cannot control.

Grab yourself the HD High Diffusion Espresso Shower Screen and create consistent, precise and high-diffused extractions for every shot.

54HD - Breville 54mm Machine Compatibility: All Breville 54mm models, Bambino, Bambino Plus, Barista Express, Barista Pro, Barista Touch, Breville Touch Impress, infuser, Duo-Temp Pro, Sage, Solis.

MVHD - Breville 58mm Machine Compatibility: All Breville 58mm models, Dual Boiler, Oracle, Oracle Touch, Oracle Jet.

*MV HD not compatible with Breville 58mm single baskets. Only use with double baskets.

The Breville high diffusion shower screen range are designed for 54mm and 58mm Breville espresso machines.

54HD Size: Breville 54

54 HD Thickness: 2.6mm

54 HD Diameter: 53mm

MVHD Size: Breville 58

MV HD Thickness: 3mm

MV HD Diameter: 58.35mm

Diffusion Plate Thickness: 5.4mm

Diffusion Plate Diameter: 57.5mm

Breville 54mm (54HD) Shower Screen:

1) Simply unscrew the center shower screw on your shower screen, and detach the shower screen from the group head.

2) Make sure to clean any residue on the group head before screwing in the new shower screen. We recommend doing a complete backflush before using new shower screen.

3) Screw in the new 54HD high diffusion shower screen using your current shower screw, and you are good to go!

Breville 58mm (MVHD) Shower Screen:

1) Simply unscrew the center shower screw on your shower screen, and detach the shower screen and plastic diffusion plate together from the group head.

2) Make sure to clean any residue on the group head before screwing in the new shower screen. We recommend doing a complete backflush before using new shower screen.

3) Place the new 100% stainless steel diffusion plate against the new HD shower screen, making sure the indent on the diffusion plate is facing away from the shower screen.

4) Screw in the new MVHD high diffusion shower screen and diffusion plate together using your current shower screw, and you are good to go!

When using the HD espresso shower screen daily we recommend using a cleaning brush to keep the outer surface and channels free of coffee grounds.

Once a week we recommend a full clean, which involves unscrewing the shower screen and washing both the shower screen plate and screws under water. This will ensure no buildup, and a clean and consistent flow of water for every extraction.
