Complete Infusion, Every Extraction!
Eliminating inconsistent water diffusion while targeting the entire puck surface area with our unique, full coverage high diffusion shower screen, dialing in your extractions has never been easier.
PESADO HD - High Diffusion Shower Screen
✔
This item is PRE-SALE only!
Ultimate Water Diffusion
Targeting the entire puck bed, creating complete diffusion every time
Full Surface Coverage
Upto 58.35mm of surface area covered every shot
Precision Water Diffusion
18 targeted channels for consistent water flow
Consistant Variables
Eliminating irregular water paths, resulting in complete control
Guaranteed Safe Checkout
✔
FIRST PRE-SALE SOLD OUT! All new orders will be shipped out between now and end of April, upon availability, while stocks last!
Overview
Introducing the Pesado High Diffusion shower screen. Designed for precision and consistency, eliminating the main issues causing irregular extractions.
Uneven water distribution has always been an issue when trying to achieve consistent extractions, this can be caused by the irregular water flow path through mesh shower screens, smaller surface area coverage and uneven puck infusion.
Utilizing 18 channels we can target the exact spots every extraction, resulting in consistent water flow between every shot.
Combined with the unique feature of the outer channels running all the way to the edge of the shower screen, controlling water flow to target the entire puck bed right to the basket edge, giving us complete control over our water diffusion every shot.
Key features:
- 18 Targeted Channels
- Precision Water Diffusion
- High Surface Coverage
SPECIFICATIONS:
Material: 304 Stainless Steel
Thickness: 3mm
Holes: 18 Channels
Diameter: 58.35mm
WHAT COMES INSIDE THE EACH SET:
LM HD Shower Screen - 1 x 58.35mm HD Shower Screen, 1 x Shower Screen Screw

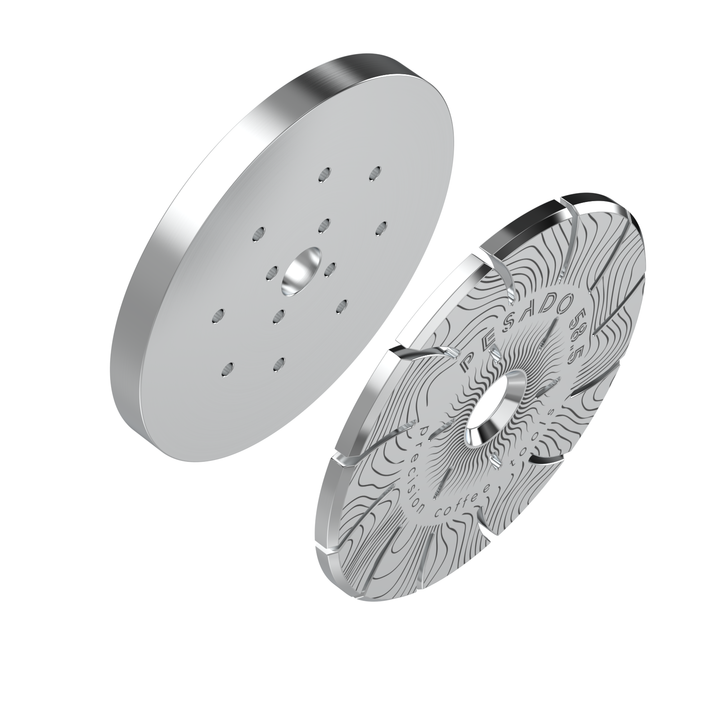

E61 HD Shower Screen - 1 x Diffusion Plate, 1 x 58.35mm HD Shower Screen, 1 x Shower Screen Screw
See our full breakdown of the new HD Shower Screen on our YouTube channel here: HD Shower Screen
HOW TO INSTALL: See our FAQ at the bottom of this page for a full description on how to install each HD high diffusion shower screen set. Or you can visit here to see a video on how to install the E61 set: HD Shower Screen
Specifications
COMPATIBILITY:
HD-E61 Shower Screen - All E61 groups except Belleza E61 & Expobar E61
HD-LM Shower Screen - La Marzocco, Synesso, Slayer. except KB90 style LM
For all other machine types and models - we are working on more compatibility!subscribe to our newsletter for updates :)
How To Install: E61 HD Shower Screen
Seal Compatibility Notice:
When installing our new HD (High Diffusion) Shower Screen, you may notice that your portafilter feels slightly loose. Don’t worry, this is completely normal. The HD screen is specifically designed to work best when paired with our HE (High Extraction) baskets - for the best coffee experience.
If you're not using an HE basket and prefer your portafilter to lock in closer to the 6 o’clock position, here are a few easy solutions:
A. Use a paper spacer behind the group seal.
You can purchase pre-made spacers or DIY your own using household paper materials, adjusting thickness as needed.
B. Try a thicker group seal.
Group seals are available in small size increments (typically 0.5mm or 1mm). These are widely available through local coffee gear suppliers.
C. Upgrade to a HE Basket
Pair your HD screen with our HE basket for the perfect fit and performance.
Bonus: Send us a copy of your order receipt and get a special discount on the HE basket upgrade!
Shipping & Returns
Shipping via DHL express to your door within 7 business days.
USA customers will now receive products without import duties paid. All USA orders will now need to have their new import taxes paid by the customer upon arrival into the country.
All orders outside of the US will need to cover any duties or import fees into your country. These are calculated by the total order value*
email us if you have any concerns or issues with your order.
PESADO HD - High Diffusion Shower Screen
18 Targeted Channels
Crafted entirely from stainless steel, with 18 targeted channels the NEW Pesado HD High Diffusion Shower Screen gives complete control over your water distribution, every extraction.
Regular Water Flow
Regular shower screens use a mesh to help distribute the water flow evenly, this does work quite well but unfortunately can result in uneven water distribution.
This is due to the water gripping to the mesh, causing an irregular water flow every extraction.
High Diffusion Water Flow
The HD High Diffusion shower screen has been designed with channels to distribute the water flow exactly where we want it to be every time. Using this method allows us to hit the exact area we need to every extraction, distributing the water flow outwards across the entire puck bed, evenly.
The HD shower screen also has a unique feature where the outer channels run all the way to the edge, allowing water to flow directly out the ends into the basket wall.
High Diffusion Puck Clearance
Most shower screens are only designed to cover up to 54mm in diameter, leaving between 4-5mm around the perimeter, resulting in a smaller surface area of about 10-15% less coverage.
Utilizing the unique design of the water channels that run all the way to the edge of the shower screen, including the extended diameter of 58.35mm of surface area, we can target the entire puck bed all at once resulting in a full, and complete infusion.
Frequently Asked Questions About HE Filter Baskets
What's the difference between the regular shower screens and the HD high diffusion shower screen?
The HD Shower Screen is designed to target the entire surface area of the puck bed, consistently every extractions. Utilizing an 18 channel design that targets up to 58.35mm of surface area, we can target the same spots of the puck bed every shot. This creates consistent, precision water diffusion.
Regular mesh shower screens cause erratic water diffusion due to the water gripping to the mesh and flowing completely different paths every extraction. This creates variables every time you extract that you cannot control.
Grab yourself the HD High Diffusion shower screen and create consistent, precision and high diffused extractions every shot.
What machines are they compatible with?
Compatibility Guide:
LM HD Shower Screen - Compatible with all La Marzocco, Synesso and Slayer machines
E61 HD Shower Screen - Compatible with all E61 machines
What size is the HD Shower Screen?
The Shower screen is designed for 58mm espresso machines.
See above for full compatibility.
How to install the HD Shower Screen?
LM - HD Shower Screen: Simply unscrew the shower screen screw, remove the current shower screen and clean the group head, then screw in the new HD shower screen. Make sure it is completely screwed in before use.
E61 - HD Shower Screen: You're current E61 shower screen will not have a centre screw like our HD does, so first you need to pop out your current shower screen and seal, then unscrew the diffusion plate inside the group head.
This is very easy to do, all you need is an m8 allen key, then simply screw in our new HD diffusion plate which gives you the ability to screw in the new HD high diffusion shower screen to the diffusion plate. Then insert your gasket seal and use your portafilter to tighten the seal.
Make sure the HD shower screen is completely screwed in before use.
How do I clean the HD Shower Screen?
When using daily we recommend using a cleaning brush to keep the outer surface and channels free of coffee grounds.
Once a week we recommend a full clean, which involves unscrewing the shower screen and washing both the shower screen plate and screws under water. This will ensure no build up, and a clean and consistent flow of water every extraction.
